Refer to the exhibit.

Packets received by the router from BGP enter via a serial interface at 209.165.201.10.Each route is present within the routing table. Which interface is used to forward traffic with a destination IP of 10.10.10.24?

A. F0/10

B. F0/11

C. F0/12

D. F0/13

An engineer must configure R1 for a new user account. The account must meet these
requirements:
* It must be configured in the local database.
* The username is engineer.
* It must use the strongest password configurable. Which command must the engineer
configure on the router?

A. R1 (config)# username engineer2 algorithm-type scrypt secret test2021

B. R1(config)# username engineer2 secret 5 .password S1$b1Ju$kZbBS1Pyh4QzwXyZ

C. R1(config)# username engineer2 privilege 1 password 7 test2021

D. R1(config)# username englneer2 secret 4 S1Sb1Ju$kZbBS1Pyh4QzwXyZ

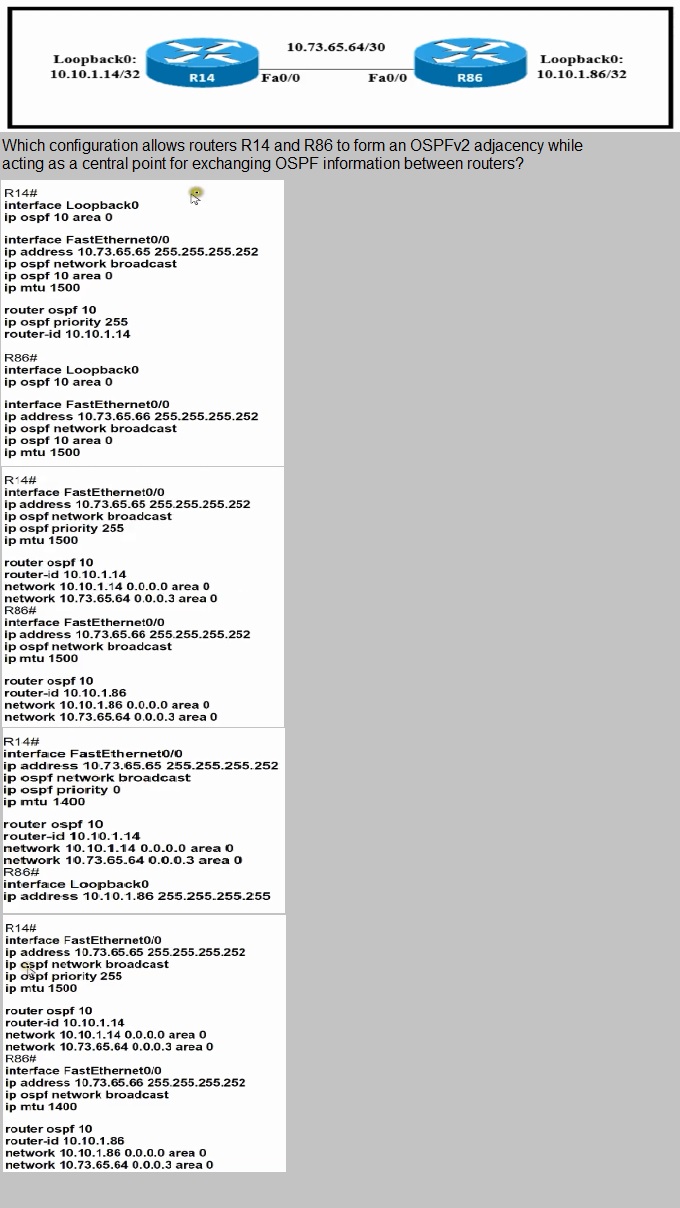

Refer to the exhibit.

A.

Option A

B.

Option B

C.

Option C

D.

Option D

Which action is taken by the data plane within a network device?

A. forwards traffic to the next hop

B. constructs a routing table based on a routing protocol

C. provides CLI access to the network device

D. looks up an egress interface in the forwarding information base

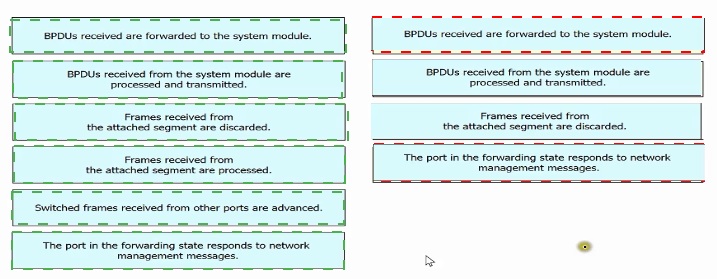

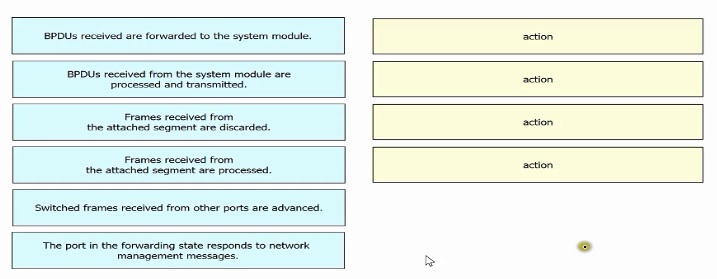

Drag and drop the Rapid PVST+ forwarding slate actions from the loft to the right. Not all actions are used.

Which interface mode must be configured to connect the lightweight APs in a centralized architecture?

A. WLAN dynamic

B. management

C. trunk

D. access

Which protocol uses the SSL?

A. HTTP

B. SSH

C. HTTPS

D. Telnet

Refer to the exhibit.

A. Option A

B. Option B

C. Option C

D. Option D

Refer to the exhibit.

An engineer is asked to insert the new VLAN into the existing trunk without modifying anything previously configured Which command accomplishes this task?

A. switchport trunk allowed vlan 100-104

B. switchport trunk allowed vlan add 104

C. switchport trunk allowed vlan all

D. switchport trunk allowed vlan 104

Drag and drop the IPv6 address details from the left onto the corresponding types on the right.
