Refer to the exhibit. R2 can access content on the server successfully. A network engineer finds packet drops on PC1 for traffic destined to network 2.2.2.2/32. Which action resolves the issue?

A.

Redistribute the static metric in EIGRP.

B.

Add the eigrp stub connected static command.

C.

Redistribute the connected metric in EIGRP.

D.

Remove the eigrp stub connected command.

Refer to the exhibit.

A.

Option A

B.

Option B

C.

Option C

D.

Option D

Refer to the exhibit. An engineer must configure a per VRF for TACACS+ for company A. Which configuration on RTG-1 accomplishes the task?

A.

Option A

B.

Option B

C.

Option C

D.

Option D

Which command will resolve this problem when WAN connectivity is down?

A.

aaa authentication login default group tacacs+ local

B.

aaa authentication login default group tacacs+ enable

C.

aaa authentication login default group tacacs+ console

D.

aaa authentication login console group tacacs+ enable

Refer to the exhibit. An engineer is trying to log in to R1 via R3 loopback address. Which action resolves the issue?

A.

Add transport input SCP

B.

Add transport input none

C.

Remove the IPv6 traffic filter from R1, which is blocking the Telnet.

D.

Remove the IPv6 traffic from R1, which is blocking the SSH

Refer to the exhibit.

R1 and R2 are configured for EIGRP peering using authentication and the neighbors failed to come up. Which action resolves the issue?

A.

Configure a matching key-id number on both routers

B.

Configure a matching lowest key-id on both routers

C.

Configure a matching key-chain name on both routers

D.

Configure a matching authentication type on both router

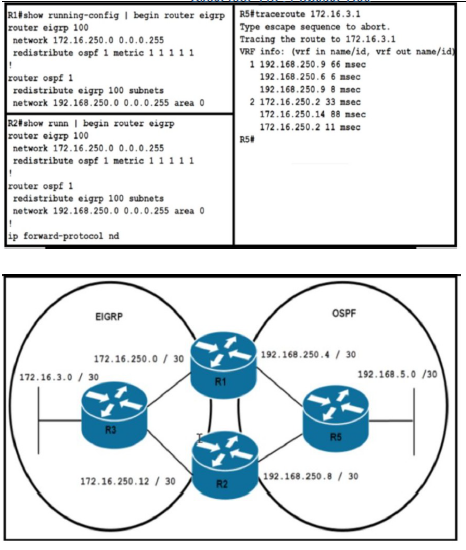

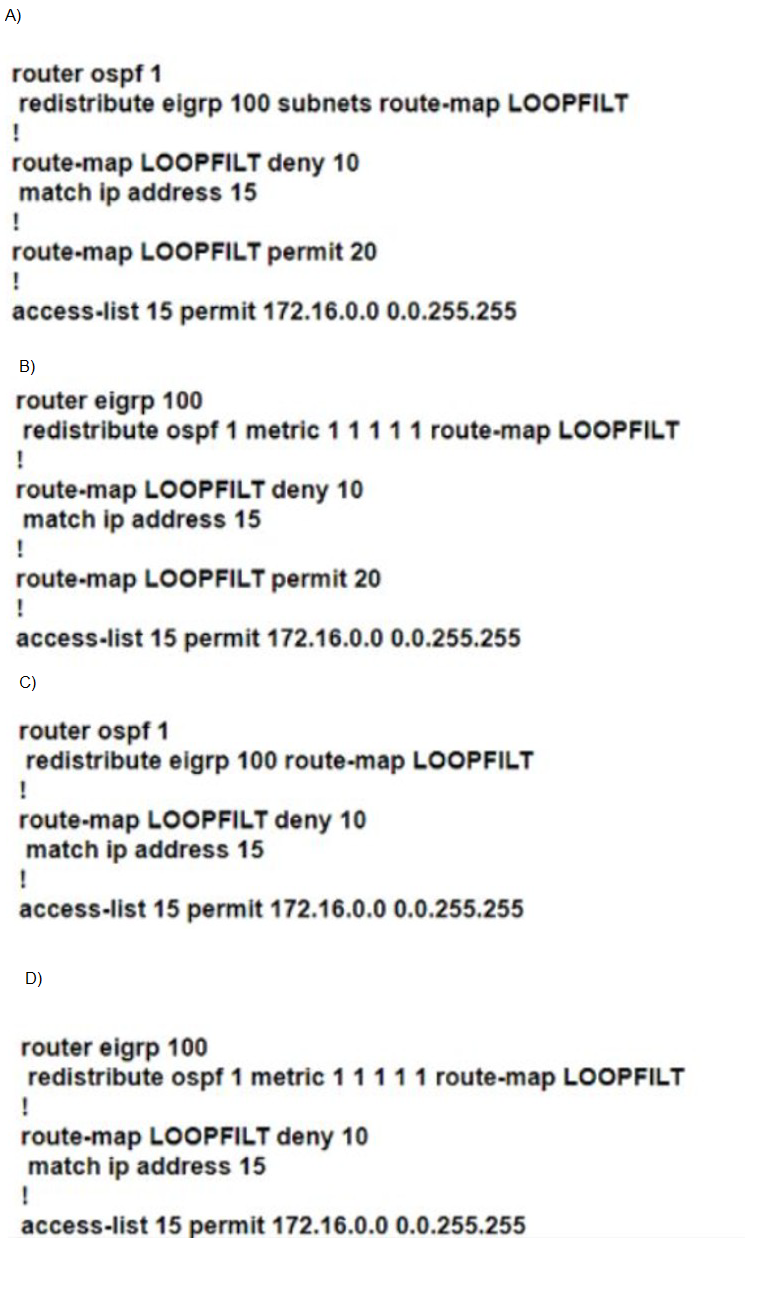

Refer to the exhibit. An engineer Is troubleshooting a routing loop on the network to reach the 172.16.3.0/16 from the OSPF domain. Which configuration on router R1 resolves the Issue?

A.

Option A

B.

Option B

C.

Option C

D.

Option D

A company is expanding business by opening 35 branches over the Internet. A network engineer must configure DMVPN at the branch routers to connect with the hub router and allow NHRP to add spoke routers securely to the multicast NHRP mappings automatically Which configuration meets this requirement at the hub router?

A.

Option A

B.

Option B

C.

Option C

D.

Option D

IPv6 is enabled in the infrastructure to support customers with an IPv6 network over WAN and to connect the head office to branch offices in the local network. One of the customers is already running IPv6 and wants to enable IPv6 over the DMVPN network infrastructure between the headend and branch sites. Which configuration command must be applied to establish an mGRE IPv6 tunnel neighborship?

A.

tunnel protection mode ipv6

B.

ipv6 unicast-routing

C.

ipv6 nhrp holdtime 30

D.

tunnel mode gre multipoint ipv6

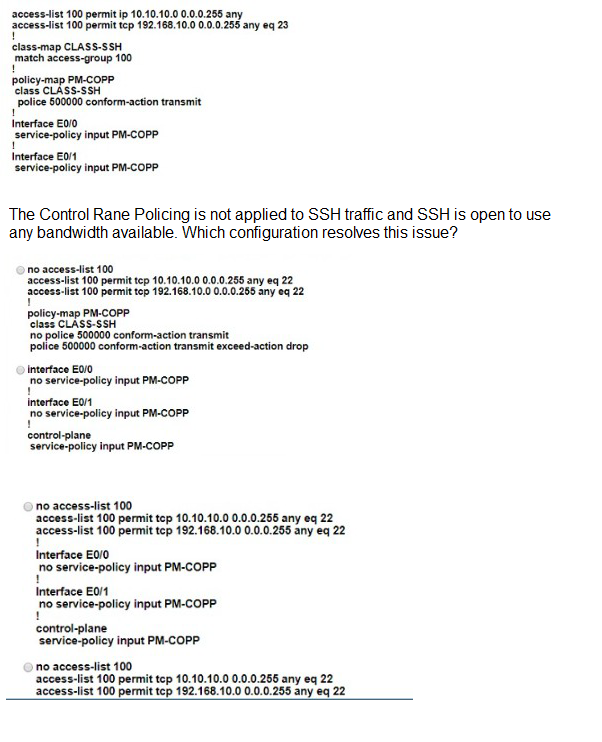

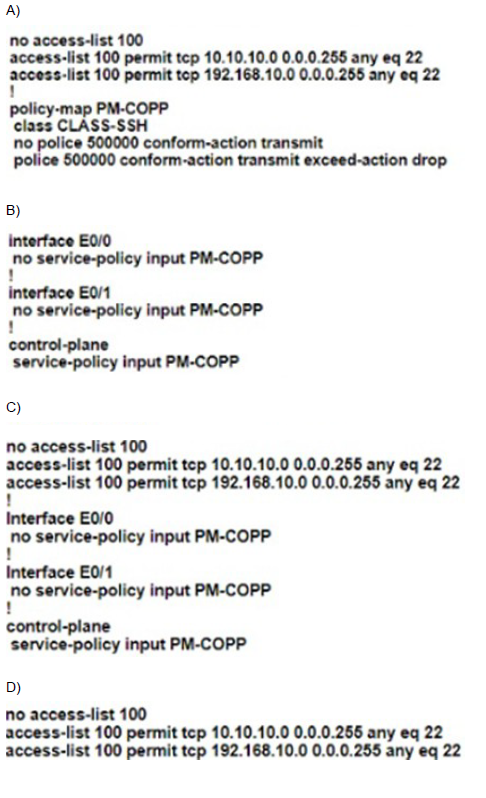

The network administrator configured the router for Control Plane Policrg so that inbound SSH traffic is policed to 500 kbps This policy must apply to traffic coming in from 101010 0<24 and 192 168 10.0/24 networks

A.

Option A

B.

Option B

C.

Option C

D.

Option D
