Free Cisco 300-815 Practice Questions 2026 | Implementing Cisco Advanced Call Control and Mobility Services (CLACCM)

ABC company has decided to implement hunt groups to help distribute calls between members. In order to implement this, administrator must configure hunt list, hunt group, and line groups on Cisco UCM. Which distribution algorithms should the administrator implement?

A.

Top Down, Round Robin, Broadcast

B.

Top Down, Circular, Broadcast

C.

Top Down, Round Robin, Distribute

D.

Sequantial, Circular, Broadcast

Due to a shortage of physical interfaces on a device the administrator requires that a loopback for RTP is used. Which command is required when using a loopback interface for RTP?

A.

voice-class sip resources priority mode passthrough

B.

voice-class sip bind control source-interface Loopback0

C.

voice-class sip early-offer forced.

D.

voice-class sip bind media source-interface Loopback0

Refer to the exhibits.

Regions have been configured for all major branches based on the available circuit
bandwidth. Some calls from Region A endpoints to Region B endpoints are failing to
connect. How is this issue resolved?

A.

Update the calling search space for affected endpoints to none.

B.

Add a media resource to transcode between available capabilities.

C.

Update all regions to 8 kbps maximum audio bitrate.

D.

Increase the number of available media termination points.

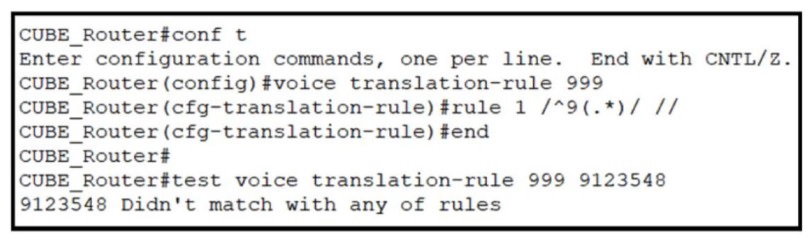

Refer to the exhibit

Which change to the translation rule is needed to strip only the leading 9 from the digit string 9123548?

A.

rule 1 /^9\(.*\)/A1/

B.

rulel /.*\(3548S\)/^1/

C.

rulel /^9\(\d*\)/^1/

D.

rule 1/^9123548/^1/

After configuring a Cisco CallManager Express with Cisco Unity Express, inbound calls from the PSTN SIP trunk receive a ring tone for 20 seconds and then a busy signal instead of voicemail. Which configuration fixes this problem?

A.

Router(config)# voice service voip
Router(conf-voi-serv)#allow-connections h323 to h323

B.

Router(config)#dial-peer voice 2 voip
Router(config-dial-peer)#no vad

C.

Router(config)# voice service voip
Router(conf-voi-serv)#allow-connections voice-mail mod

D.

Router(config)# voice service voip
Router(conf-voi-serv)#no supplementary-service sip moved-temporarily

An engineer must configure a Cisco UCM hunt list so that calls to users in a line group are routed to the first idle user and then the next. Which distribution algorithm must be configured to accomplish this task?

A.

top down

B.

circular

C.

broadcast

D.

longest idle time

Refer to the exhibit.

Users report that when they dial the emergency number 9911 from any internal phone, it takes a long time to connect with the emergency operator. Which action resolves this issue?

A.

Adjust the service parameter T302 timet to the desired value.

B.

Adjust the service parameter T204 timer to the desired value.

C.

Check the Urgent Priority check box under 9.911 pattern.

D.

Point the emergency pattern directly to the PSTN gateway.

A company has users that are logged in to hunt groups. However, there is a requirement
for hunt group configurations to provide an option to turn on audible ringtones when calls to
a line group arrive at a phone that is logged out and on a break. This ringtone alerts a
logged-out user that there is an incoming call to a hunt list to which the line is a member,
but the call does not ring at the phone of that line group member because of the logged-out
status. Which action meets this requirement?

A.

Configure the HLog softkey on the phone so that while a user is logged off, it plays an audible tone when a call is missed.

B.

Set the service parameter Party Entrance Tone to True."

C.

Configure the service parameter hunt group logoff notification and specify the name of the ringtone file.

D.

Set the service parameter Enterprise Feature Access number for hunt group logout and set up an access number

Refer to the exhibit



A.

Option A

B.

Option B

C.

Option C

D.

Option D

You see the voice register pool 1 command in your Cisco Unified Communications
Manager Express configuration. Which configuration is occurring in this section?

A.

configuration for a single SIP phone

B.

configuration items common for all SIP phones

C.

configuration for a pool of SIP phones (similar to device pool on Cisco Unified
Communications Manager)

D.

configuration for SIP registrar service
