Free Cisco 350-801 Practice Questions 2026 | Implementing Cisco Collaboration Core Technologies (350-801 CLCOR)

Which destination does cisco UCM use DNS to resolve fully qualified domain names to IP addresses?

A.

Cisco UCM Name

B.

primary TFTP server for option 150

C.

SIP trunk

D.

application server name

Refer to the exhibit.

Unanswered calls do not reach the voicemail associated with the phones Instead, callers receive the default greeting Which action fixes the configuration?

A.

Reboot Cisco Unity Connection

B.

Review the conversation manager logs on Cisco Unity Connection

C.

Check the box "Redirecting Diversion Header Delivery - Outbound", then reset the trunk

D.

Check the box "Redirecting Diversion Header Delivery - Outbound"

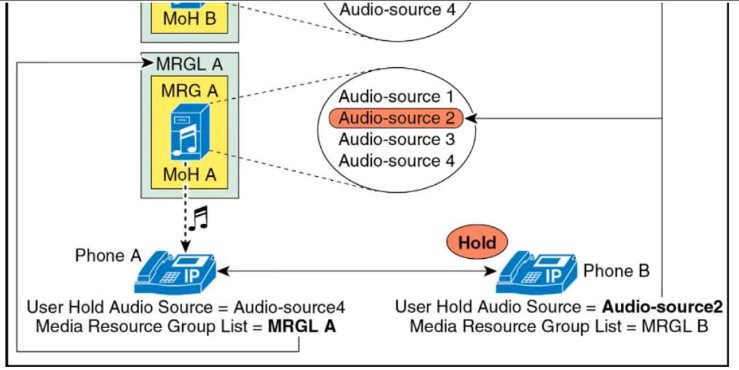

Refer to the exhibit.

There is a call flow between Phone A and Phone B Phone B (holder) places Phone A (holder) on hold Which MRGL and Audio Source are played to Phone A?

A.

MRGL A and Audio Source 4

B.

MRGL B and Audio Source 4

C.

MRGL B and Audio Source 2

D.

MRGL A and Audio Source 2

A collaboration engineer configures Global Dial Plan Replication for multiple Cisco UCM clusters. The local cluster acts as the hub cluster and the remaining clusters act as spoke clusters. Which service must the engineer configure on the local cluster?

A.

Location Conveyance on intercluster SIP trunks

B.

intra-Cluster Communication Signaling

C.

Mobility Cross Cluster

D.

Intercluster Lookup Service

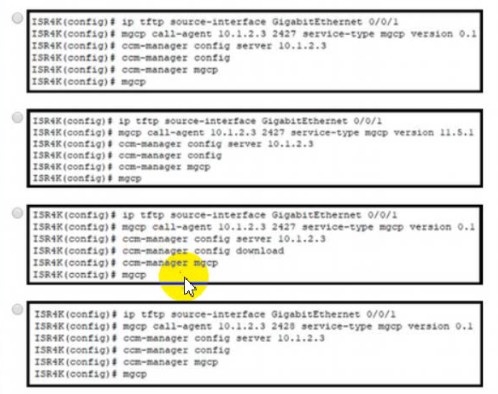

An engineer must configure a cisco ISR 4000 as an MGCP gateway to download its MGCP-specific configuration from cisco UCM. Which Cisco IOS configuration snippet accomplishes this task?

A.

Option A

B.

Option B

C.

Option C

D.

Option D

An engineer implements a new Cisco UCM based telephony system per these
requirements:
• The local Ethernet bandwidth is sized based on the total bandwidth per call
• A G.736 codec is used.
• The bit rate is 64 kbps
• The codec sample interval is 10 ms.
• The voice payload size is 160 bytes per 20 ms.
What should the size of the Ethernet bandwidth be per call?

A.

31 2 kbps

B.

38.4 kbps

C.

55.2 kbps

D.

87.2 kbps

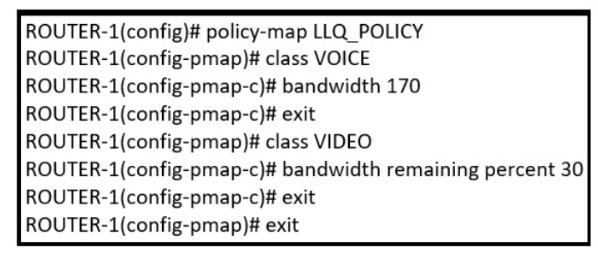

Refer to the exhibit.

An engineer must modify the existing QoS policy-map statement to implement LLQ for voice traffic. Which change must the engineer make in the configuration?

A.

bandwidth 170 to LLQ 170

B.

bandwidth 170 to priority 170

C.

bandwidth 170 to reserve 170

D.

bandwidth 170 to percent 170

Which two features of Cisco Prime Collaboration Assurance require advanced licensing g? (Choose two.)

A.

real time alarm browse

B.

multicluster support

C.

call quality monitoring

D.

email notifications

E.

customizable events

AN administrator needs to help remote employee make a free call to an international
destination. The administrator calls the employee, then conferences in the international
party. The administrator drops the call, and the employee and the international party
continue their conversation. Which action prevents this type of toll fraud in the Cisco USM?

A.

Set service parameter "Advanced Ad Hoc Conference" to FALSE

B.

Set service parameter "Drop Ad Hoc Conference" to "Do not allow outside parties "

C.

Set service parameter "Drop Ad Hoc Conference" to "When Conference Controller leaves"

D.

Set service parameter "Advanced Ad Hoc Conference" to 2.

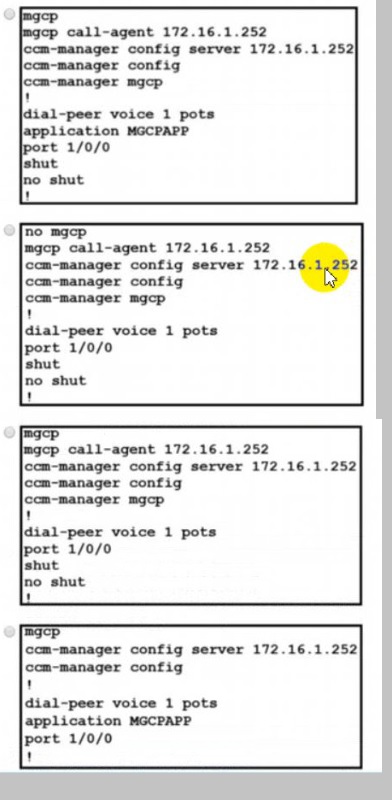

An engineer must manually register an analog port with cisco UCM using the MGCP protocol. Which commands are required?

A.

Option A

B.

Option B

C.

Option C

D.

Option D
