Free Cisco 350-801 Practice Questions 2026 | Implementing Cisco Collaboration Core Technologies (350-801 CLCOR)

An administrator configures Cisco UCM to use UDP for SIP signaling and finds that an endpoint cannot make calls Which action resolves this issue?

A.

Change the phone security profile.

B.

Change the SIP dial rules.

C.

Change the SIP profile

D.

Change the common phone profile

A collaboration engineer must optimize the dial plan within Cisco UCM. There are multiple
remote sites. And each site has its own route patterns and local gateways. What should the
engineer do on the cisco UCM to optimize the dial plan?

A.

Configure a Standard Local Route Group to use a single route pattern for all calls within the cluster.

B.

Create a centralized dial plan with a Cisco UCM Session Management Edition cluster or a Cisco gatekeeper.

C.

Implement ILS with GDPR so the dial plan can dynamically replicate across clusters.

D.

Leverage Cisco UCM Express as SRST so the phones can have more features of each remote site

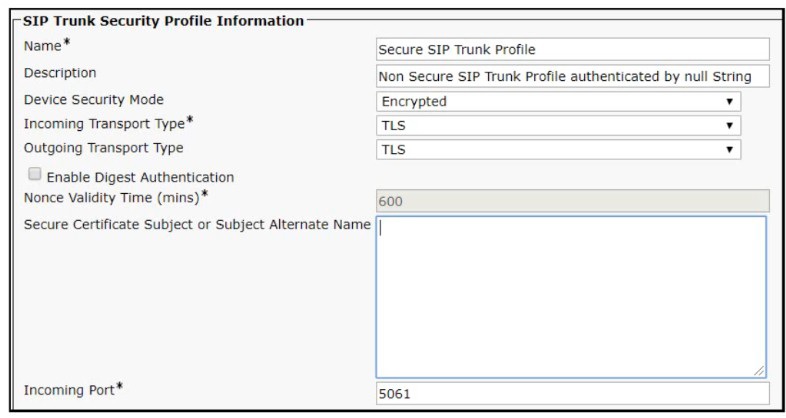

Refer to the exhibit.

An administrator configures a secure SIP trunk on Cisco UCM. Which value is needed in
the Secure Certificate Subject or Subject Alternate Name field to accomplish this task?

A.

the fully qualified domain name of the remote device that is configured on the SIP trunk

B.

the common name of the Cisco UCM CallManager certificate

C.

the common name of the remote device certificates

D.

the fully qualified domain name of all Cisco UCM nodes that run the CallManager service

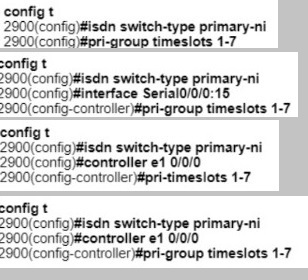

An administrator needs to create a partial PRI consisting of the first seven timeslots
available. Which configuration snippet configures the ISDN E1 PRI for this task?

A.

Option A

B.

Option B

C.

Option C

D.

Option D

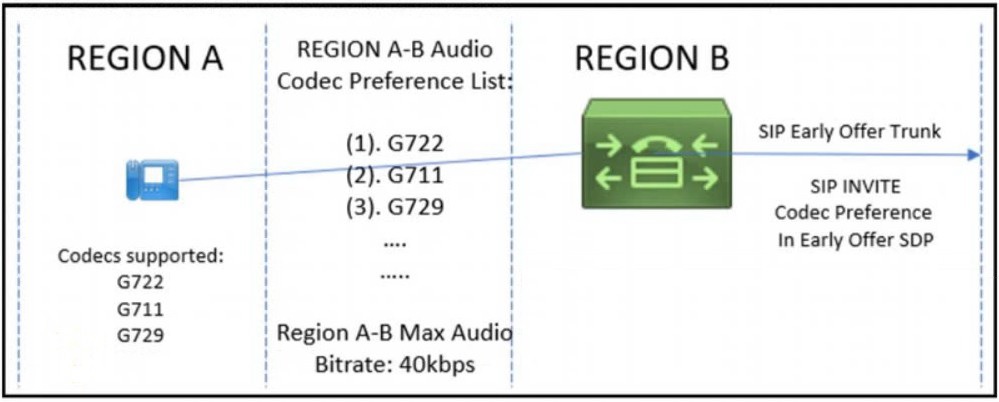

Refer to the exhibit. In this cisco UCM setup configured for EARLY offer, what is the codec preference line in the initial SIP INVITE SDP?

A.

m=audio 16444 RTP/AVP 9 18 101

B.

m=audio 16444 RTP/AVP 0 8 18 101

C.

m=audio 16444 RTP/AVP 18 101

D.

m=audio 16444 RTP/AVP 9 0 8 18 101

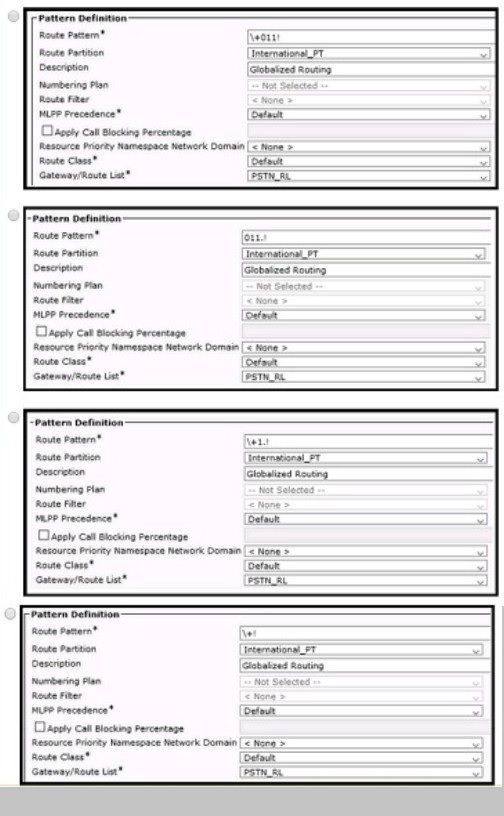

An engineer must configure a route pattern that can route all + E.164 globalized
international numbers for the dial plans of all countries. Which cisco UCM configuration accomplishes this task?

A.

Option A

B.

Option B

C.

Option C

D.

Option D

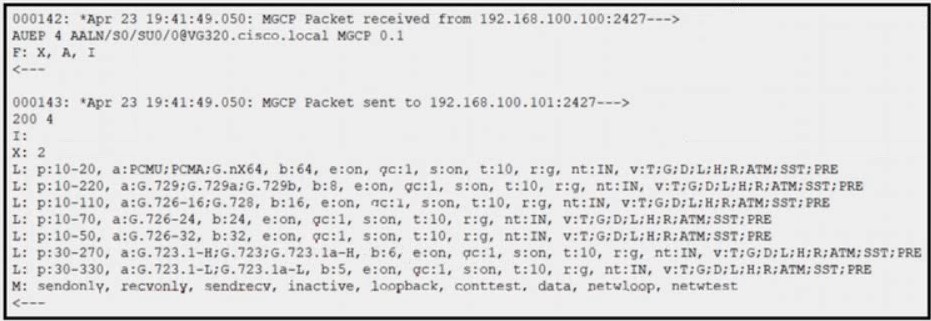

Refer to the exhibit. What is the registration state of the analog port in this debug output?

A.

The MGCP Gateway is not communicating with the Cisco UCM.

B.

The analog port failed to register to Cisco UCM with an error code 200.

C.

The analog port is currently shut down.

D.

The analog port is registered to Cisco UCM.

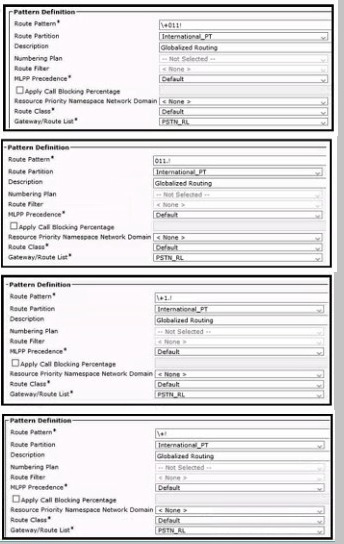

An engineer must configure a route pattern that can route all +E.164 globalized
international numbers for the plans of all countries. Which Cisco UCM configuration accomplish this task?

A.

Option A

B.

Option B

C.

Option C

D.

Option D

An administrator must implement toll fraud prevention on cisco UCM using these
parameters:

How must the route pattern be implemented?

A.

Pattern = 3.800xxxxxx

B.

Pattern = 8005551212.1122113

C.

Pattern = 8005xxxxxx

D.

Pattern = 1122113.8005551212

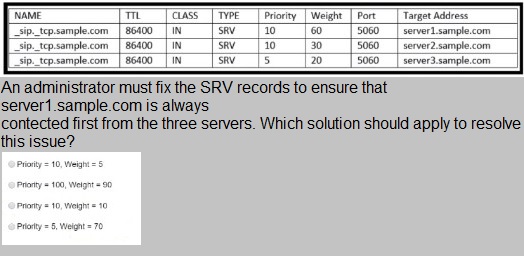

Refer to the exhibit.

A.

Priority = 10, Weight = 5

B.

Priority = 100, Weight = 90

C.

Priority = 10, Weight = 10

D.

Priority = 5, Weight = 70
