Free Cisco 350-101 Practice Questions 2026 | Implementing and Operating Cisco Wireless Core Technologies (350-101 WLCOR)v1.0

Which process allows continuous IP address retention in a wireless network during roaming?

A. static VLAN assignment policy

B. Layer 3 roaming

C. deferred probe response technique

D. redundant RF profile mapping

Which function does FRA use to optimize client experience and network coverage?

A. Monitoring on the physical interface level in the AP

B. Enhances roaming by redirecting the client to move to the appropriate AP

C. Implementation by local data path control

D. Dynamically adapts the roles of dual-band radios in an AP

Which Cisco Ultra-Reliable Wireless Backhaul process enables devices to establish a reliable connection with the next AP along their path before losing connectivity to the current one in a wireless network during roaming?

A. Open roaming

B. Fast client handoff

C. 802.11v high speed roaming

D. Make-before-break handover logic

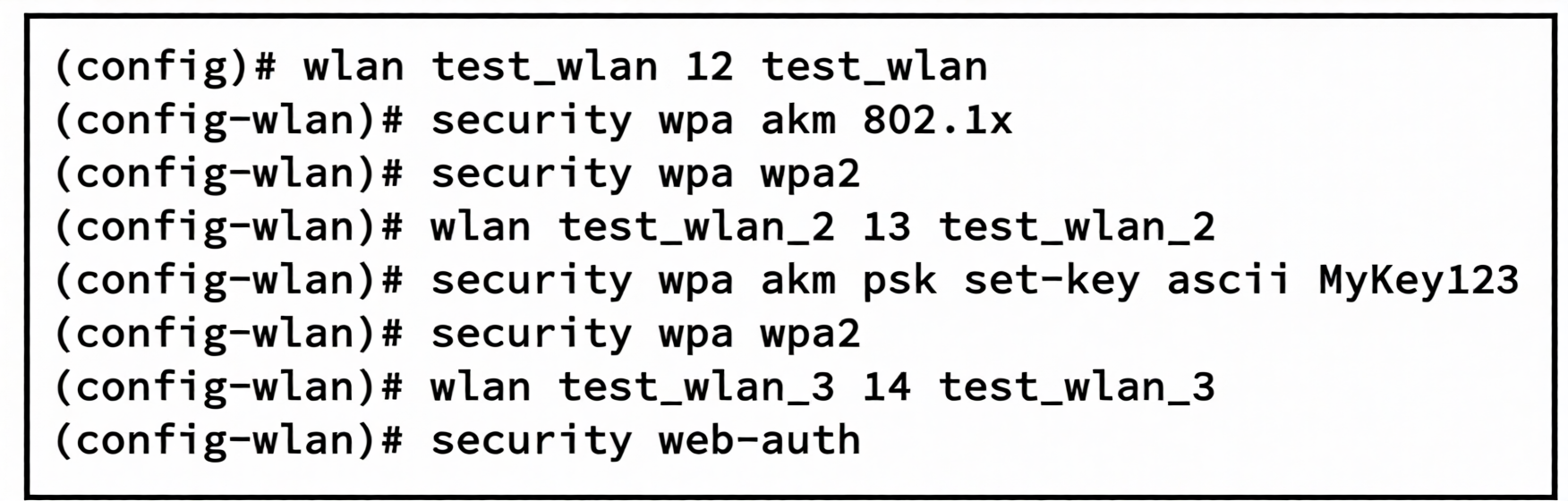

A wireless controller is deployed at a branch location to facilitate secure client connectivity. A network engineer configures one WLAN using WPA2 Personal authentication and activates the preshared key method to align with company security policies. Which action must be taken to enable the client to connect to the WLAN?

A. Enter the preshared key at the WLAN security configuration prompt

B. Enable MAC filtering for security group assignment

C. Configure Active Directory integration for WLAN authentication

D. Import a client certificate for WPA2 authentication

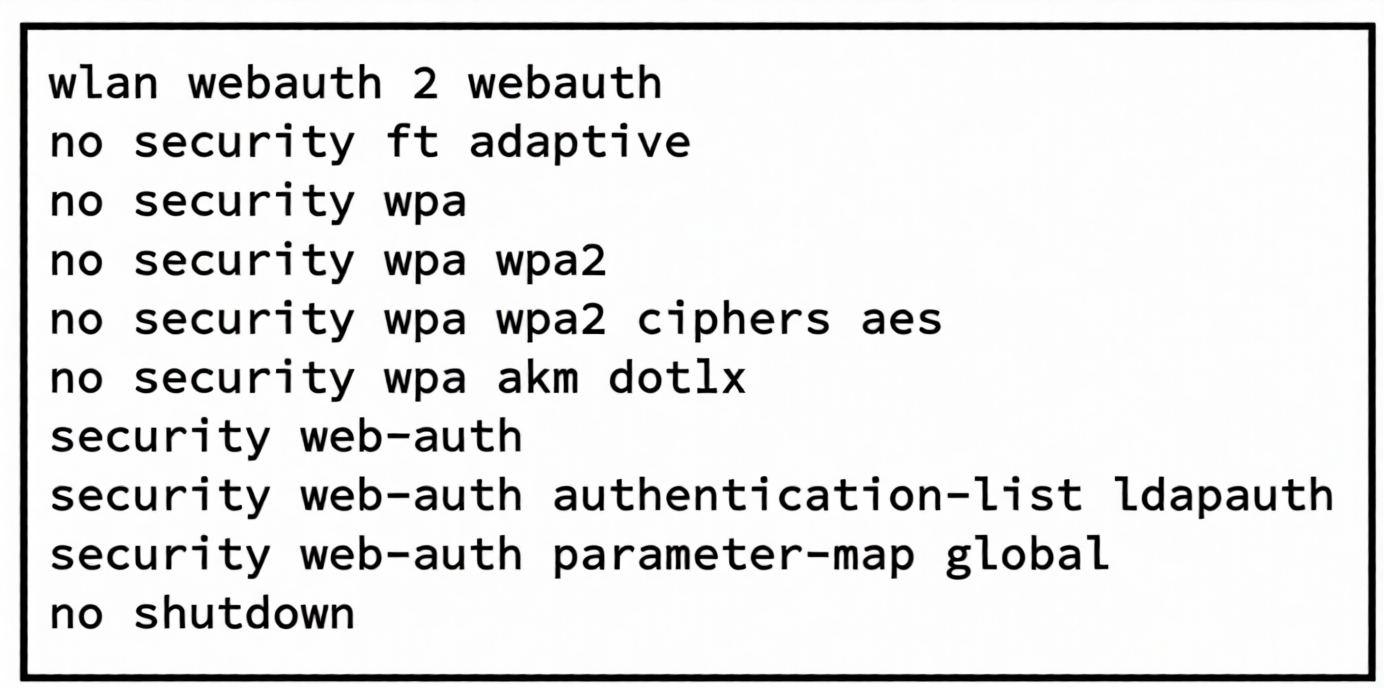

Refer to the exhibit. A wireless controller is deployed at a branch location to facilitate guest client connectivity. A network engineer configures one WLAN using Web authentication and activates web-based method to align with company security policies. Which configuration enables client authentication for this WLAN?

A. security web-auth

B. wlan webauth 2 webauth

C. no security wpa wpa2

D. no security wpa akm dot1x

A network administrator at a marketing company manages a Cisco Catalyst 9800 Series Wireless Controller running Cisco IOS XE 17.x. The WLAN named XYZ-Guest is set up for visitors, and the administrator wants to implement a web authentication (WebAuth) portal using an external server to manage guest access. To ensure seamless and secure guest authentication, the controller must be configured to use an external WebAuth server for the WLAN. The administrator must configure the XYZ-Guest WLAN to use an external WebAuth server with a parameter map named webauth-ext. Which set of Cisco IOS XE commands must be used?

A. wireless wlan XYZ-Guestsecurity web-auth external webauth-ext

B. wireless wlan XYZ-Guest 2 XYZ-Guestparameter-map webauth-ext

C. wlan XYZ-Guest 2parameter external security-map webauth-ext

D. wlan XYZ-Guest 2 XYZ-Guestsecurity web-auth parameter-map webauth-ext

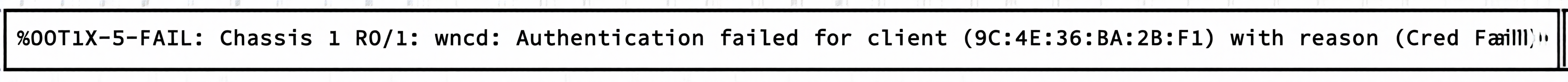

Refer to the exhibit. The Catalyst 9800 WLC logs show when a client with MAC address 9C:4E:36:8A:2B:F1 fails to connect to a WLAN configured for Wi-Fi Protected Access 3-Enterprise with 802.1X. Which action must the engineer take to resolve the issue?

A. Ensure that the AP is using the appropriate credentials.

B. Change the WLAN to Wi-Fi Protected Access 2-Personal and configure a preshared key.

C. Verify the client's Active Directory credentials and ensure that the RADIUS server is reachable.

D. Disable RADIUS NAC on the policy profile assigned to the WLAN.

A network engineer is integrating Cisco ISE with a wireless controller for 802.1X authentication. The controller is registered with Cisco ISE as a network device. To secure communication, the engineer must configure a shared secret for RADIUS authentication. Which CLI command on the WLC accomplishes this task?

A. 9800(config-radius-server)# radius enable authentication MySecretKey123

B. 9800(config-radius-server)# radius-server shared-secret MySecretKey123

C. 9800(config-radius-server)# ISE MySecretKey123

D. 9800(config-radius-server)# key 0 MySecretKey123

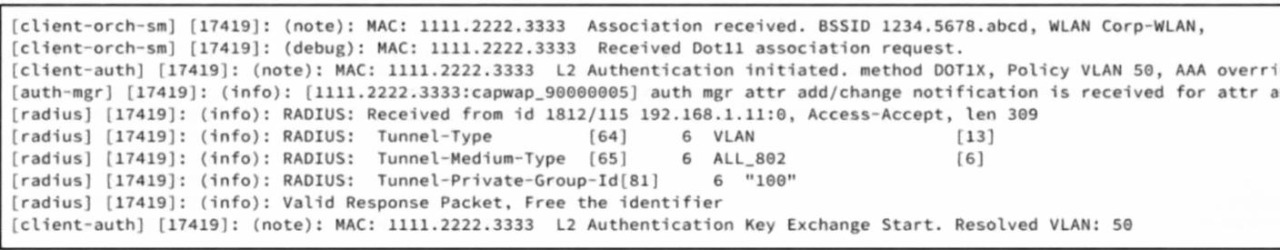

Refer to the exhibit. A client authenticates via 802.1X against an ISE server that is configured to return a specific VLAN ID (VLAN 100) via an attribute value pair. However, the administrator notices that the client is placed in the wrong VLAN (VLAN 50). What must the administrator implement to resolve the issue?

A. Configure the policy profile to allow ISE to override the VLAN.

B. Configure VLAN 100 as an SVI on the WLC.

C. Configure VLAN 100 on the trunk ports of the WLC.

D. Configure AAA VLAN enable on the WLAN.

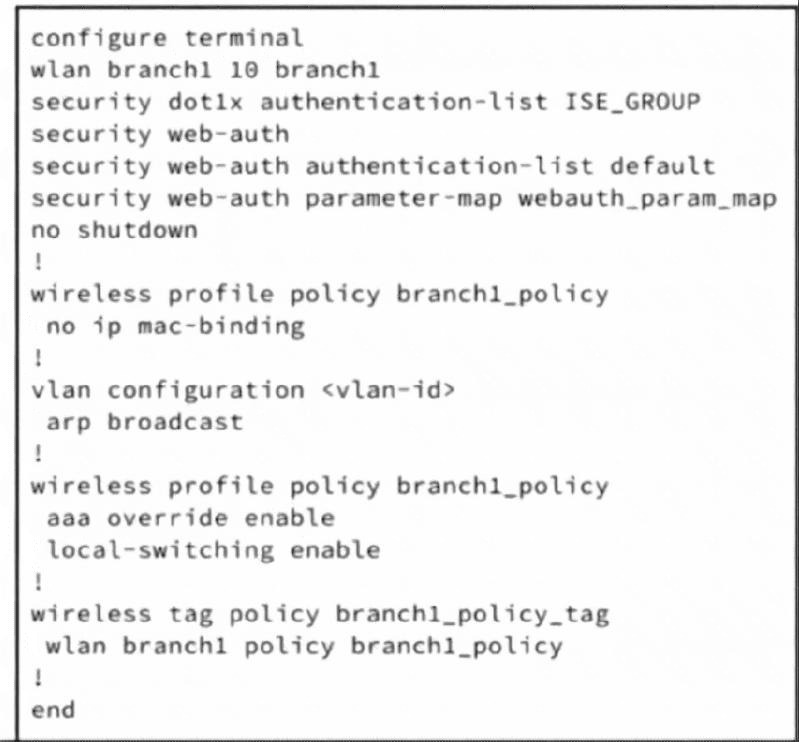

Refer to the exhibit. A wireless controller is deployed at a branch location to facilitate secure client connectivity. A network engineer configures a WLAN using 802.1X to align with company security policies. Which configuration enables client authentication for this WLAN?

A. no ip mac-binding

B. security dot1x authentication-list ISE_GROUP

C. aaa override enable

D. wlan branch1 policy branch1_policy
